Name: Automatic Barrier Gate Equipped with 6m Straight Boom and DC24V Variable Frequency Motor for Traffic and Parking Management
Brand: Shenzhen Wejoin Mechanical & Electrical Co.
SKU: CB01VF-I
Price: 475.00 USD
Availability: InStock

Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi

Özellikleri

Teknik Özellikler

Bom tipi: Düz bom / Floding Boom

Gerilim: AC 110V-265V

Bom uzunluğu: Maks. 6M (özelleştirilmiş)

Garanti: 2 yıl

Muhafaza Rengi: Siyah

Başvuru: otopark

Vurgulamak:

Automatic barrier gate with 6m boom

DC24V variable frequency motor barrier

Parking management automatic barrier gate

Temel bilgiler

Menşe yeri: Çin

Marka adı: WEJOIN

Sertifika: CE ISO

Model numarası: CB01VF-I

Ödeme & teslimat koşulları

Ambalaj bilgileri: karton

Teslim süresi: Ödeme alındıktan 15 iş günü sonra

Ödeme koşulları: T/T

Yetenek temini: 10000 takım/ay

Fotoğraf Galerisi

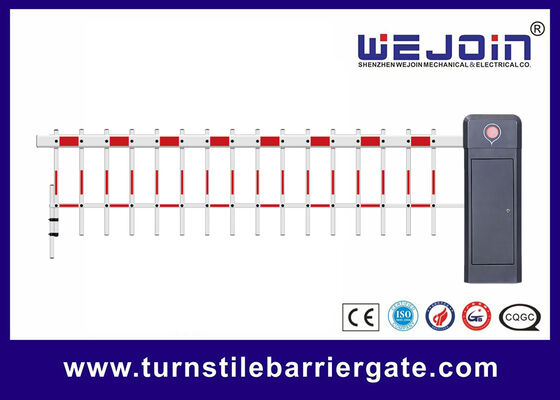

Automatic Barrier Gate Equipped with 6m Straight Boom and DC24V Variable Frequency Motor for Traffic and Parking Management

Ürün Açıklaması

Automatic Barrier Gate Equipped with 6m Straight Boom and DC24V Variable Frequency Motor for Traffic and Parking Management

Boom Barrier Gate Functions & Features

N1212Serial No. Function & Parameter Details 1 Adopts DC variable frequency control motor drive, equipped with connecting rod transmission mechanism and balance spring for stable and reliable operation; motor service life up to 6 million times, spring service life 500,000 times 1.1.2 With auto-reversing on obstacle function, the boom will reverse automatically when encountering an obstacle during the closing process 1.1.3 Supports external radar, ground coil and infrared anti-smashing function; built-in DC 12V power output, available for power supply of external radar 1.1.4 Supports RS485 communication or RS485 offline connection mode 1.1.5 Optional Bluetooth module, convenient debugging of the barrier gate via mini-program 1.1.6 Equipped with a large LCD screen with an English visual menu, easy for function selection and debugging operation 1.1.7 Support interchange of left and right installation modesSerial No. Function & Parameter Details 1 Adopts DC variable frequency control motor drive, equipped with connecting rod transmission mechanism and balance spring for stable and reliable operation; motor service life up to 6 million times, spring service life 500,000 times 1.1.2 With auto-reversing on obstacle function, the boom will reverse automatically when encountering an obstacle during the closing process 1.1.3 Supports external radar, ground coil and infrared anti-smashing function; built-in DC 12V power output, available for power supply of external radar 1.1.4 Supports RS485 communication or RS485 offline connection mode 1.1.5 Optional Bluetooth module, convenient debugging of the barrier gate via mini-program 1.1.6 Equipped with a large LCD screen with an English visual menu, easy for function selection and debugging operation 1.1.7 Support interchange of left and right installation modes	Function & Parameter Details
1	Adopts DC variable frequency control motor drive, equipped with connecting rod transmission mechanism and balance spring for stable and reliable operation; motor service life up to 6 million times, spring service life 500,000 times
2	With auto-reversing on obstacle function, the boom will reverse automatically when encountering an obstacle during the closing process
3	Supports external radar, ground coil and infrared anti-smashing function; built-in DC 12V power output, available for power supply of external radar
4	Supports RS485 communication or RS485 offline connection mode
5	Optional Bluetooth module, convenient debugging of the barrier gate via mini-program
6	Equipped with a large LCD screen with an English visual menu, easy for function selection and debugging operation
7	Support interchange of left and right installation modes

Barrier Gate Controller Interface Explanations

Wire Control Interface:

This interface is available for parking system, also available for external controller to control barrier gate.

UP: Short circuit “UP” and “GND”

Down: Short circuit “Down” and “GND”

Stop: Short circuit “Stop” and “GND”

Anti-smashing Interface:

Infrared Photocell: boom will lift up when short circuiting “Infrared photocell interface” and “GND” during boom down.

Loop Detector: boom will lift up when short circuiting “loop detector interface” and “GND” during boom down; in up limit position, boom will fall down automatically after these two interfaces disconnected.

RS485 Communication Interface :

It is used for controlling the barrier gate or checking the status of the barrier gate by computer or system; also used for online controlling the paired barrier gates synchronously.

Vehicle Barrier Gate Technical Data

1. Working temperature (motor): -30℃~ + 70℃

2. Power supply input voltage: AC110±10%, or AC220V±10%

3. Controller input voltage: DC24V±10%, 10A

4. Motor power: 240W MAX

5. Relative Humidity: 30%~80%, No condensation

6. Distance of remote control: L≥30M

7. Running Speed: 2~6 seconds adjustable

8. MTBF: 6,000,000 times

Automatic Barrier Gate Equipped with 6m Straight Boom and DC24V Variable Frequency Motor for Traffic and Parking Management 0
