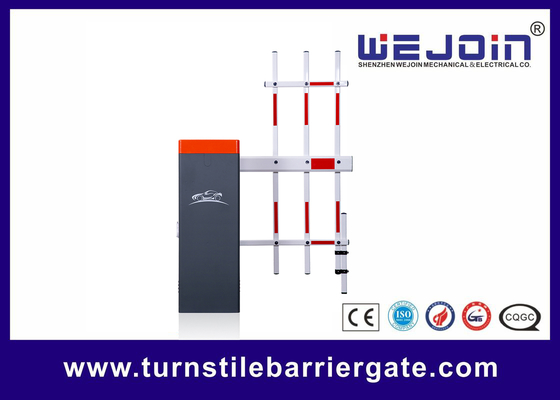

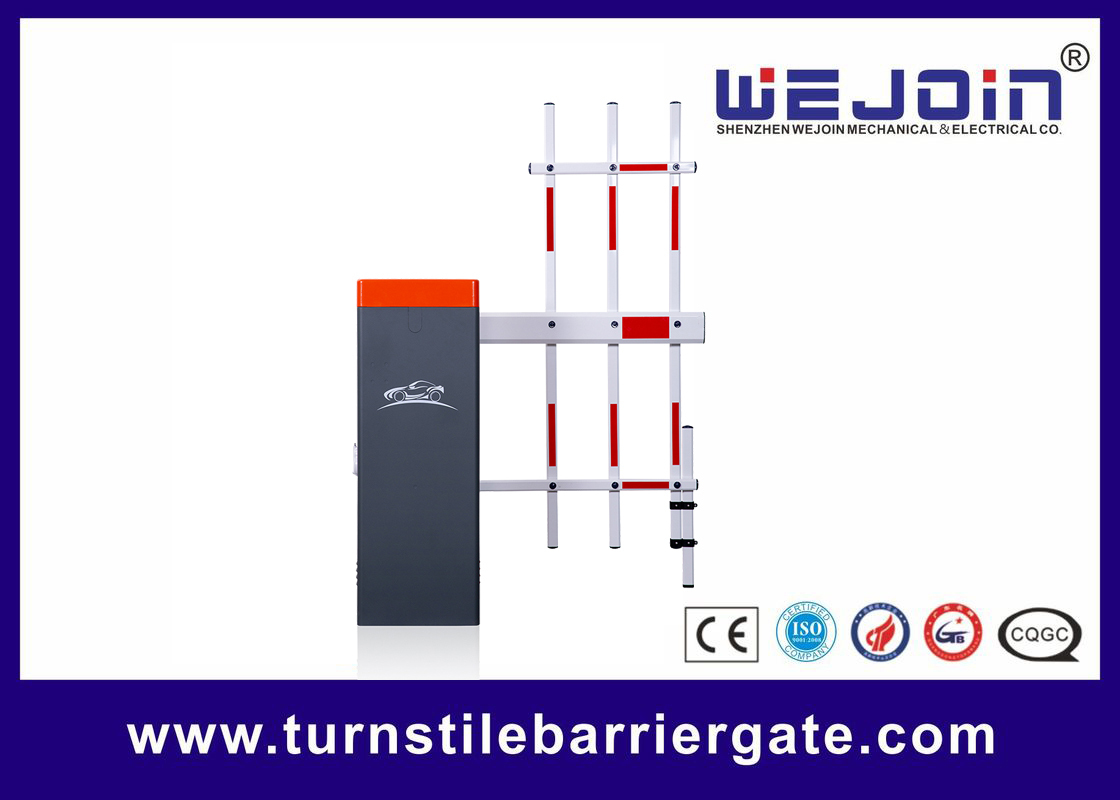

DC24V 10A Power Supply 4m Three Fence Boom Barrier Gate 100% Duty Cycle
Parking Barrier Gate Functional Features
1. DC frequency conversion motor drive, the use of connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life of up to 4.5 million times or more, spring life of up to 500,000 times.
2. The whole series is equipped with the function of rebound in case of obstruction as standard, the barrier gate arm will return automatically in case of obstruction in the process of descending.
3. Support external radar, coil, infrared anti-smash function, built-in DC 12V power supply output, can power supply for external radar.
4. support RS485 communication or RS485 folio online.
5. optional bluetooth module, convenient to debug anti-barrier door through small program.
6. large LCD display, Chinese visualization menu, convenient for function selection and debugging. 7. Left and right are interchangeable.
8. 1.5~6 seconds adjustable speed of opening and closing.
Barrier Gate Auto-open when power off
|
Sub-menu
|
Defaults
|
Range
|
Remarks
|
|
2.1 Low voltage actuation time
|
OFF
|
0-5000, 0 is OFF
|
The time when the voltage is lower than the set threshold and continues to exceed the threshold, it will turn on automatically.
Unit: millisecond.
|
|
1.2 Low voltage threshold
|
21
|
15-23
|
The operating voltage is lower than the threshold; unit: V.
|
Boom Barrier Valid Time of Loop Detector Signal
In the process of opening or up limit position, the duration time of the loop detector signal needs to exceed the setting time, and the auto-closing action will be executed after the loop detector signal disappears, avoiding that the loop detector signal is too short and triggers the auto-closing action to hit the vehicles. The default time is 200ms. Range: 100ms-900ms.
Mechanism Installation Direction Change
This barrier mechanism can be both left-installed and right-installed. The users can change the installation direction according to the actual situation. We will take the left-installed barrier mechanism as an example, and the operation steps for changing to the right-installed are as follows:
1. Take out the 10MM screw by turning 8MM Allen wrench counterclockwise
2. Push out the boom holder by turning wrench clockwise with a 14MM*150 screw
3. Turn the mechanism 180 degrees vertically
4. Put the mechanism into the cabinet
5. Assemble the boom holder back, and fix the 10MM screw by turning 8MM Allen wrench clockwise
